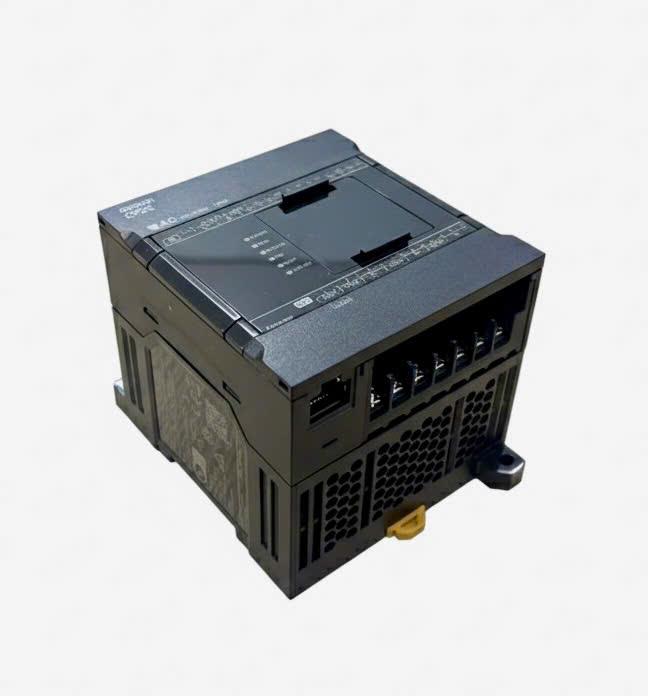

Bộ lập trình PLC CP2E-N20DR-D
12 ngỏ vào (Sink/Source)
08 ngỏ ra tiếp điểm rơ le
Cổng truyền thông 1~2 Ports EtherNet
1 khe cắm truyền thông RS-232C, RS-485, EtherNet
Bộ nhớ 10K Steps, 16K words, Đồng hồ thời gian thực (real time)
Mở rộng tối đa 3 module, max 180 I/O
Nguồn cấp 12~24 VDC
Basic model Built-in RS232 port:
CP2E-E20DR-A PLC 12 In DC / 08 Out relay, Power: 100-240VAC
CP2E-E30DR-A PLC 18 In DC / 12 Out relay, Power: 100-240VAC
CP2E-E40DR-A PLC 24 In DC / 16 Out relay, Power: 100-240VAC
CP2E-E60DR-A PLC 36 In DC / 24 Out relay, Power: 100-240VAC
Basic model Built-in RS232 & RS485 port:
CP2E-S30DR-A PLC 18 In DC / 12 Out relay, Power: 100-240VAC
CP2E-S40DR-A PLC 24 In DC / 16 Out relay, Power: 100-240VAC
CP2E-S60DR-A PLC 36 In DC / 24 Out relay, Power: 100-240VAC
Basic model Built-in Ethernet port:
CP2E-N20DR-A PLC 12 In DC / 08 Out relay, Power: 100-240VAC
CP2E-N20DT-D PLC 12 In DC / 08 Out transistor NPN, Power: 12-24VDC
CP2E-N30DR-A PLC 18 In DC / 12 Out relay, Power: 100-240VAC
CP2E-N30DR-D PLC 18 In DC / 12 Out relay, Power: 12-24VDC
CP2E-N30DT-D PLC 18 In DC / 12 Out transistor NPN, Power: 12-24VDC
CP2E-N40DR-A PLC 24 In DC / 16 Out relay, Power: 100-240VAC
CP2E-N40DR-D PLC 24 In DC / 16 Out relay, Power: 12-24VDC
CP2E-N40DT-D PLC 24 In DC / 16 Out transistor NPN, Power: 12-24VDC
CP2E-N60DR-A PLC 36 In DC / 24 Out relay, Power: 100-240VAC
CP2E-N60DR-D PLC 36 In DC / 24 Out relay, Power: 12-24VDC
CP2E-N60DT-D PLC 26 In DC / 24 Out transistor NPN, Power: 12-24VDC
Digital module
CP1W-8ED Module digital, 08 Input DC
CP1W-8ER Module digital, 08 Output Relay
CP1W-16ER Module digital, 16 Output Relay
CP1W-32ER Module digital, 32 Output Relay
CP1W-20EDR1 Module digital, 12 Input DC / 08 Output Relay
CP1W-40EDR Module digital, 24 Input DC / 16 Output Relay
Analog, Temperature Module:
CP1W-AD041 Module analog 4 Input multi range
CP1W-DA021 Module analog 2 Input multi range
CP1W-DA041 Module analog 4 Output multi range
CP1W-MAD11 Module analog 2 Input - 1 Output, multi range
CP1W-MAD42 Module analog 4 Input - 2 Output, multi range
CP1W-MAD44 Module analog 4 Input - 4 Output, multi range
CP1W-TS001 Module nhiệt độ Thermocouple Input, 2 kênh
CP1W-TS002 Module nhiệt độ Thermocouple Input, 4 kênh
CP1W-TS101 Module nhiệt độ Pt100 input, 2 kênh
CP1W-TS102 Module nhiệt độ Pt100 Input, 4 kênh
Other module:
CP1W-CIF01 Module truyền thông 1 ports RS-232
CP1W-CIF11 Module truyền thông 1port RS-422/485 (50m)
CP1W-CIF12-V1 Module truyền thông 1 ports RS-422/485 (500m)
CP1W-CIFD1 Module truyền thông 2 ports RS-232
CP2W-CIFD2 Module truyền thông 1 port RS-232C, 1port RS-422/485 (50m)
CP2W-CIFD3 Module truyền thông 2 ports RS-422/485 (500m)
CP1W-CIF41 Module truyền thông Ethernet TCP/IP
CP1W-CN811 Cáp nối 0.8m module mở rộng
